งานรับผลิต ( Bolts )

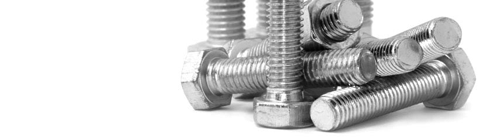

Bolts

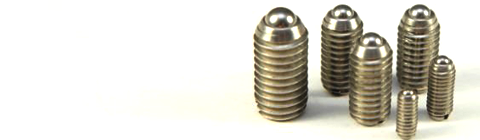

Ball plugers

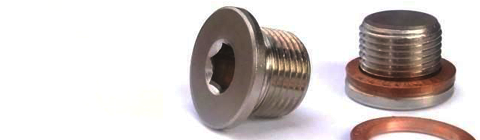

Pipe plugs

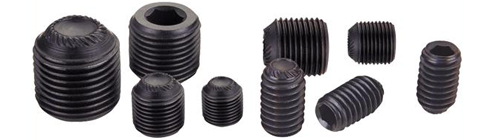

Socket set screws
Special studs

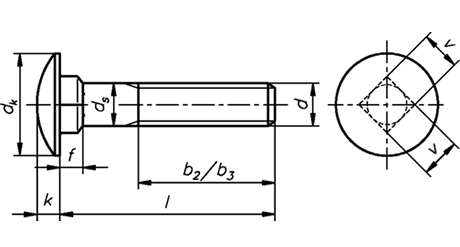

D DK V K L
M5 12.45-13.35 4.52-5.48 2.70-3.30 12-90
M6 15.45-16.55 5.52-6.48 3.12-3.88 12-170
M7 16.50-17.50 6.70-7.30 3.43-4.17 30-100
M8 19.35-20.65 7.42-8.58 4.12-4.88 15-200
M10 23.35-24.65 9.42-10.58 4.62-5.38 16-300
M12 29.35-30.65 11.30-12.70 6.05-6.95 25-300
M14 33.30-34.80 13.60-14.30 7.65-8.45 80-300
M16 37.20-38.80 15.30-16.70 8.05-8.95 35-300
M20 45.20-46.80 19.16-20.84 9.95-11.05 50-300

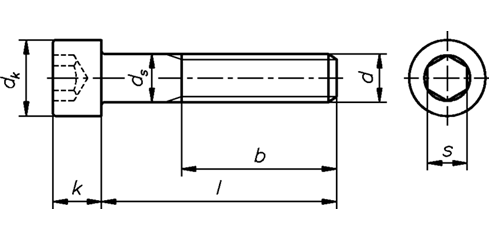

D DK K L
M1.4 2.46-2.60 1.26-1.40 2-12
M1.6 2.86-3.00 1.46-1.60 2.5-16
M2 3.62-3.80 1.86-2.00 2.5-20
M2.5 4.32-4.50 2.36-2.50 3-25
M3 5.32-5.50 2.86-3.00 5-30
M4 6.78-7.00 3.82-4.00 6-40
M5 8.20-8.50 4.82-5.00 8-50
M6 9.78-10.00 5.70-6.00 8-100
M8 12.73-13.00 7.64-8.00 10-200
M10 15.73-16.00 9.64-10.00 16-200
M12 17.73-18.00 11.57-12.00 16-200
M14 20.67-21.00 13.57-14.00 25-200
M16 23.67-24.00 15.57-16.00 25-200
M18 26.67-27.00 17.57-18.00 30-200
M20 29.67-30.00 19.48-20.00 30-200
M22 32.61-33.00 21.48-22.00 35-200
M24 35.61-36.00 23.48-24.00 40-200
M27 39.61-40.00 26.48-27.00 45-200
M30 44.61-45.00 29.48-30.00 45-200
M33 49.61-50.00 32.38-33.00 50-300
M36 53.54-54.00 35.38-36.00 55-300
M42 62.54-63.00 41.38-42.00 60-300
M48 71.54-72.00 47.38-48.00 70-300
M56 83.46-84.00 55.26-56.00 80-300
M64 95.46-96.00 63.26-64.00 90-300
M72 x 6 107.46-708.00 71.62-72.00 100-300
M80 x 6 119.46-120.00 79.26-80.00 120-300
M90 x 6 134.37-135.00 89.13-90.00 140-300
M100 x 6 149.37-150.00 99.13-100.00

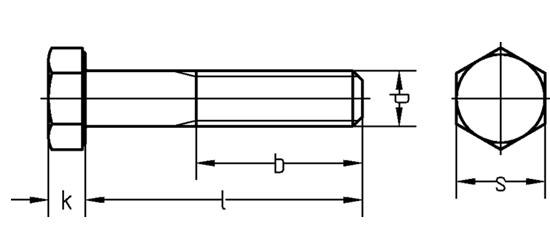

D S E K L
M1.6 3.2 3.41 MIN. 1.1 12-16
M2 4.0 4.32 MIN. 1.4 16-20
M2.5 5.0 5.45 MIN. 1.7 16-25
M3 5.5 6.01 MIN. 2.0 20-30
M3.5 6.0 6.58 MIN. 2.4 25-35
M4 7.0 7.66 MIN. 2.8 20-50
M5 8.0 8.79 MIN. 3.5 25-60
M6 10.0 11.05 MIN. 4.0 30-100
M7 11.0 12.12 MIN. 4.8 30-70
M8 13.0 14.38 MIN. 5.3 35-150
M10 17.0 18.90 MIN. 6.4 40-150
M12 19.0 21.10 MIN. 7.5 45-200
M14 22.0 24.49 MIN. 8.8 50-150
M16 24.0 26.75 MIN. 10.0 55-200
M18 27.0 30.14 MIN. 11.5 65-160
M20 30.0 33.53 MIN. 12.5 65-200
M22 32.0 35.72 MIN. 14.0 70-220
M24 36.0 39.98 MIN. 15.0 80-240
M27 41.0 45.20 MIN. 17.0 90-260
M30 46.0 50.85 MIN. 18.7 90-300
M33 50.0 55.37 MIN. 21.0 100-300
M36 55.0 60.79 MIN. 22.5 110-300
M39 60.0 66.44 MIN. 25.0 120-300
M42 65.0 71.30 MIN. 26.0 130-300
M45 70.0 76.95 MIN. 28.0 130-300
M48 75.0 82.60 MIN. 30.0 140-340
M52 80.0 88.25 MIN. 33.0 150-340
M56 85.0 93.56 MIN. 35.0 160-360
M60 90.0 99.21 MIN. 38.0 170-360
M64 95.0 104.86 MIN. 40.0 180-360
M68 100.0 110.51 MIN. 43.0 190-380
M72 x 6 105.0 116.16 MIN. 45.0 200-400
M76 x 6 110.0 121.81 MIN. 48.0 220-420
M80 x 6 115.0 127.46 MIN. 50.0 220-460
M90 x 6 130.0 144.08 MIN. 57.0 240-500
M100 x 6 145.0 161.02 MIN. 63.0 260-500
M110 x 6 155.0 172.32 MIN. 69.0 280-500
M125 x 6 180.0 200.57 MIN. 79.0 320-500
M140 x 6 200.0 220.80 MIN. 88.0 340-500
M160 x 6 230.0 254.70 MIN. 100.0 380-500

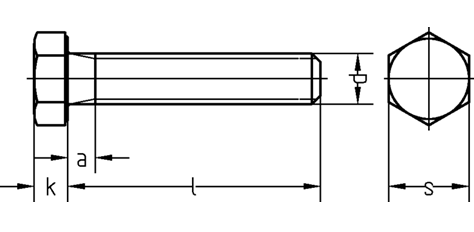

D S E K L
M1.6 3.2 3.41 MIN. 1.1 2-12
M2 4.0 4.32 MIN. 1.4 3-16
M2.5 5.0 5.45 MIN. 1.7 3-25
M3 5.5 6.01 MIN. 2.0 4-30
M3.5 6.0 6.58 MIN. 2.4 5-35
M4 7.0 7.66 MIN. 2.8 5-70
M5 8.0 8.79 MIN. 3.5 6-80
M6 10.0 11.05 MIN. 4.0 6-80
M7 11.0 12.12 MIN. 4.8 7-100
M8 13.0 14.38 MIN. 5.3 8-160
M10 17.0 18.90 MIN. 6.4 8-200
M12 19.0 21.10 MIN. 7.5 10-200
M14 22.0 24.49 MIN. 8.8 10-150
M16 24.0 26.75 MIN. 10.0 12-200
M18 27.0 30.14 MIN. 11.5 16-200
M20 30.0 33.53 MIN. 12.5 16-200
M22 32.0 35.72 MIN. 14.0 16-200
M24 36.0 39.98 MIN. 15.0 16-200
M27 41.0 45.20 MIN. 17.0 22-200
M30 46.0 50.85 MIN. 18.7 35-200
M33 50.0 55.37 MIN. 21.0 35-200
M36 55.0 60.79 MIN. 22.5 35-200
M39 60.0 66.44 MIN. 25.0 35-200
M42 65.0 71.30 MIN. 26.0 40-200
M45 70.0 76.95 MIN. 28.0 40-200
M48 75.0 82.60 MIN. 30.0 40-200
M52 80.0 88.25 MIN. 33.0 50-200
